| 首頁 > 監(jiān)控器材 > AVENIR > 定焦距鏡頭 > SE1212 |
| Model No | SE1212 | |
| Image Format Cover | 1/2" ～ 1/3" | |
| 焦點距離 | 12.0 mm | |
| MAX光圈比率 | 1 : 1.2 | |
| Iris光圈 | 操作 | 手動調節(jié) |
| Iris Range | F1.2 ～ Close | |
| FocusOperation | Focus 焦點 | 手調 |
| Scale | ||
| 視角 (D×H×V) |
1/3 inch | 27.4° × 22.1° × 16.7° |
| 1/2 inch | 37.1° × 29.7° × 22.3° | |
| 2/3 inch | * * * | |
| 1 inch | * * * | |
| Minimum Object DistanceMIN可視距離 | 0.3 m | |
| Back Focal Length 后焦長度 | 12.10 mm | |
| Effective Diameter | Front 前部 | φ11.2 mm |
| Rear 后部 | φ11.0 mm | |
| Filter Screw size | M34.0 P=0.5 | |
| Mount | C / 17.526mm | |

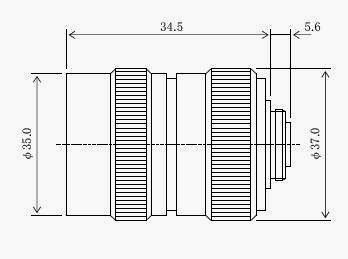

| Mechanical Dimension(D×L)機械尺寸 | φ37.0mm × 34.5mm | |
| Weight重量 | 74.5g | |
| 應用溫度環(huán)境 | -10°C ～ +50°C (+14°F ～ +122°F) | |
