| 首頁 > 監控器材 > AVENIR > manual zoom type > SL08551 |

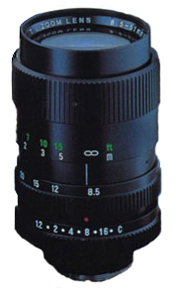

| Model No | SL08551 | ||
| Image Format Cover | 1/2" ～ 1/3" | ||
| 焦點距離 | 8.5 ～ 51 mm | ||
| MAX光圈比率 | 1 : 1.2 | ||
| Zoom Ratio 變焦倍數 | 6.0 倍 | ||
| Iris光圈 | Control Method | 手動 | |
| Iris Range | F1.2 ～ Close | ||
| 速度 | * * * | ||
| Input Voltage & Current | * * * | ||
| Sensitivity Adjustment | * * * | ||
| Focus 焦點 | 控制方式 | 手調 | |
| Zoom 變焦 | 控制方式 | 手調 | |
| 視角 (D×H×V) |
1/3 inch | Wide | 38.8° × 31.3° × 23.6° |
| Tele | 6.8° × 5.5° × 4.1° | ||
| 1/2 inch | Wide | 50.7° × 41.2° × 31.3° | |
| Tele | 8.9° × 7.2° × 5.5° | ||
| 2/3 inch | Wide | * * * | |
| Tele | * * * | ||
| 1 inch | Wide | * * * | |
| Tele | * * * | ||
| Minimum Object DistanceMIN可視距離 | 1.0 m | ||
| Back Focal Length 后焦長度 | 12.55 mm | ||
| Effective Diameter | Front 前部 | φ44.0 mm | |
| Rear 后部 | φ11.7 mm | ||
| Filter Screw size | M52.0 P=0.75 | ||
| Mount | C / 17.526mm | ||
| Mechanical Dimension(D×L)機械尺寸 | φ58.8mm × 93.4mm | ||
| Weight重量 | 440.0g | ||
| 應用溫度環境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||
