| 首頁 > 監控器材 > AVENIR > 電動鏡頭 > SL10200A/SL10200P/SL10200M |
| Model No | SL 10200A | SL 10200P | SL 10200M | ||
| Image Format Cover | 1/2" ～ 1/3" | ||||
| 焦點距離 | 10 ～ 200 mm | ||||
| MAX光圈比率 | 1 : F1.8 | ||||
| Iris光圈 | 操作 | 視頻驅動 | 電機拉動 | ||
| Iris Range | F1.8 ～ 360 | F1.8 ～ Close | |||
| 速度 | 0.2 S | ||||
| 輸入電壓 | DC 8 ～ 16V Max. 30mA | DC 12V Max. 50mA | |||
| 靈敏度調整 | 0.5 ～ 1.0VP-P | * * * | |||
| Focus 焦點 | 控制方式 | 電動 | 電動／預置 | 電動 | |
| 速度 | 0.4 S | ||||
| 輸入電壓 | DC 12V Max. 50mA | ||||
| ZOOM 變焦 | 控制方式 | 電動 | 電動／預置 | 電動 | |
| 速度 | 0.4 S | ||||
| 輸入電壓 | DC 12V Max. 50mA | ||||
| Angle Field of View (D×H×V) |
1/3 inch | Wide | 33.5° × 26.8° × 20.1° | ||
| Tele | 1.8° × 1.4° × 1.1° | ||||
| 1/2 inch | Wide | 44.4° × 35.7° × 26.8° | |||
| Tele | 2.3° × 1.9° × 1.4° | ||||
| 2/3 inch | Wide | * * * | |||
| Tele | * * * | ||||
| 1 inch | Wide | * * * | |||
| Tele | * * * | ||||
| Minimum Object Distance | 1.5 m | ||||
| Back Focal Length | 14.39 mm | ||||
| Effective Diameter | Front | φ57.0 mm | |||
| Rear | φ13.8 mm | ||||
| Filter Screw size | M62.0 P=0.75 | ||||
| Mount / Flange Back | C / 17.526mm | ||||

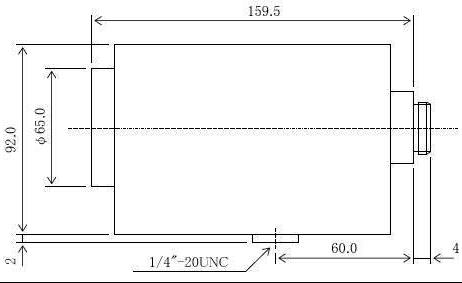

| Mechanical Dimension (W×H×L) | 78.0mm × 92.0mm × 159.5mm | ||||
| Weight | 880.0g | 920.0g | 860.0g | ||
| Application Temperature Range | -10°C ～ +50°C (+14°F ～ +122°F) | ||||
