| 首頁 > 監控器材 > AVENIR > 定焦距鏡頭 > SSE0612 |
| Model No | SSE0612 | |
| Image Format Cover | 1/4" 1/3" | |
| 焦點距離 | 6.0 mm | |
| MAX光圈比率 | F1.2-C | |
| Iris光圈 | 操作 | 手動調節 |
| Iris Range | F1.2 ～ Close | |
| FocusOperation | Focus 焦點 | 手調 |
| Scale | Far Near | |
| 視角 (D×H×V) |
1/3 inch | 61.1°× 48.1°× 35.6° |
| 1/2 inch | * * * | |
| 2/3 inch | * * * | |
| 1 inch | * * * | |
| Minimum Object DistanceMIN可視距離 | 0.3 m | |
| Back Focal Length 后焦長度 | 9.30 mm | |
| Effective Diameter | Front 前部 | φ14.0 mm |
| Rear 后部 | φ8.9 mm | |
| Filter Screw size | M30.5 P=0.5 | |
| Mount | C / 17.526mm | |
| Mechanical Dimension(D×L)機械尺寸 | φ35.0mm × 22.5mm | |
| Weight重量 | 41.7g | |
| 應用溫度環境 | -10°C ～ +50°C (+14°F ～ +122°F) | |

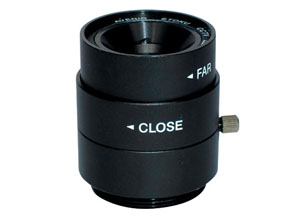

SE0612
